TABLE OF CONTENTS
- To Connect an AWR250 to HerdApp:
- To Connect an AWR250 to a Tru-Test S3 Scales:
- To Connect an AWR250 to a Tru-Test EW7i Scales:
- To Change between HerdApp and direct scales connections:
- To Record Weights using the AWR and the S3 Scales:
To Connect an AWR250 to HerdApp:

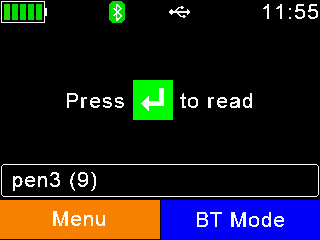

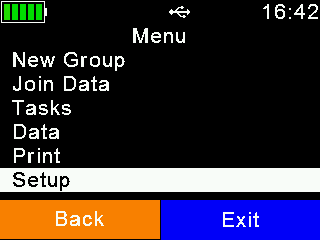

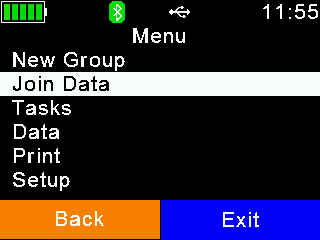

1. Go to Menu  | 2. Select Setup  |

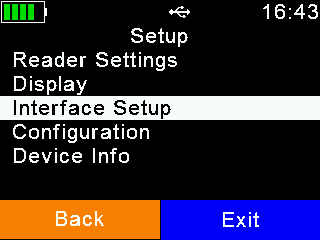

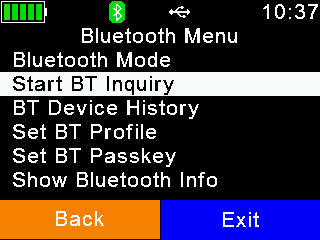

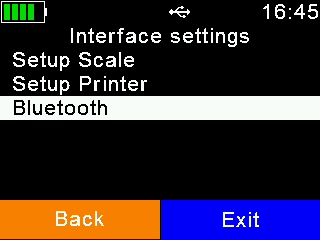

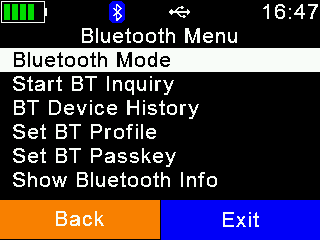

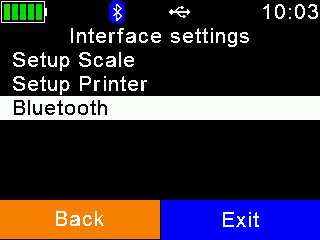

3. Select Interface Setup  | 4. Select Bluetooth  |

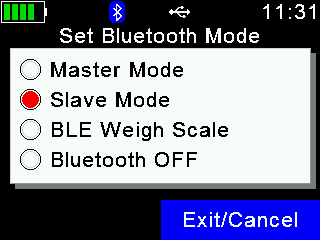

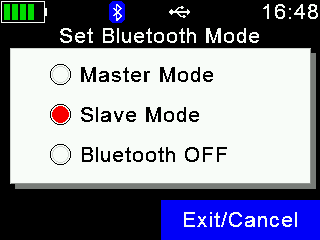

5. Select Bluetooth Mode  | 6. Select Slave Mode  |

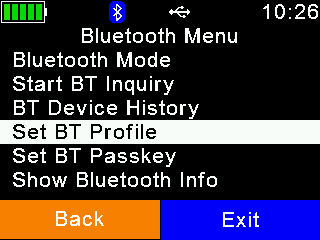

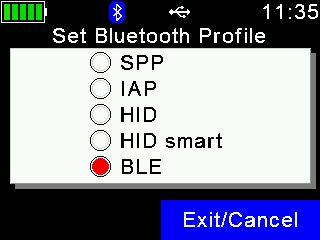

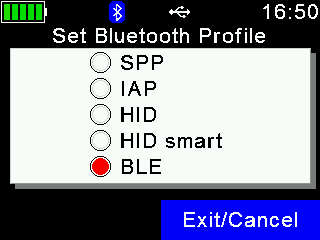

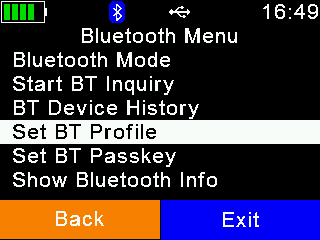

7. Select Set BT Profile  | 8. Select BLE  |
Device is now ready for connection with HerdApp
Click on the wand icon anywhere you see it in HerdApp on mobile to complete connection.
==========================================
To Connect an AWR250 to a Tru-Test S3 Scales:
This is only needed to connect the AWR wand directly to the S3 scales without HerdApp. To connect scales and wand to HerdApp use the instructions above.
IF S3 scales is not in the list on the wand then you may need to install the latest firmware using the Agrilink Program.
1. Go to Menu: | 2. Select Setup |

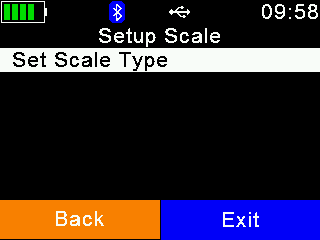

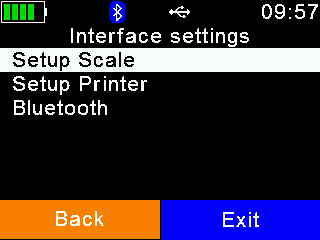

3. Select Interface Setup | 4. Select Setup Scale |

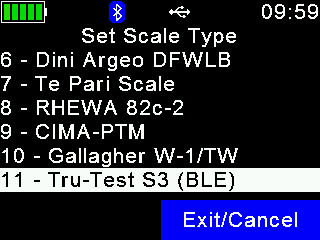

5. Select Set Scale Type | 6. Select Tru-Test S3 (BLE) |
7. Go Back | 8. Select Bluetooth |

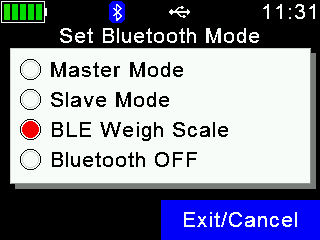

9. Select Bluetooth Mode | 10. Select BLE Weigh Scale |
11. Green Icon on Reader shows connected. | 12. Bluetooth Icon should also show on weigh head. |
==========================================
To Connect an AWR250 to a Tru-Test EW7i Scales:
| 1. Go to Menu: | 2. Select Setup |

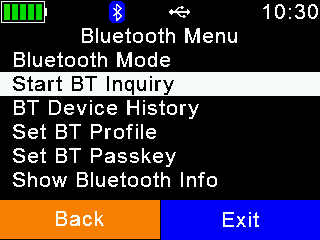

3. Select Interface Setup | 4. Select Bluetooth |

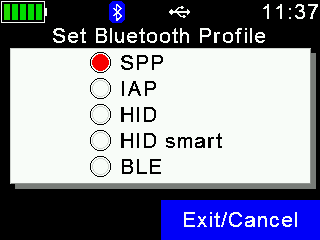

5. Select BT Profile | 6. Select SPP |

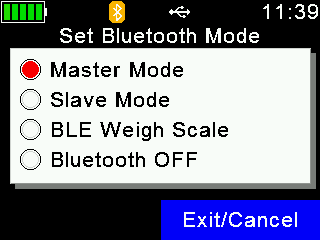

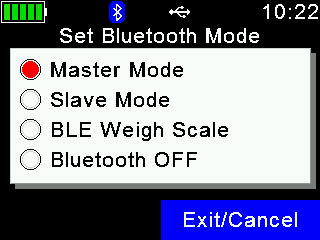

7. Select Bluetooth Mode | 8. Select Master Mode |

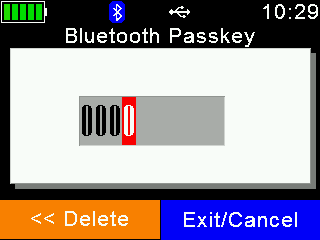

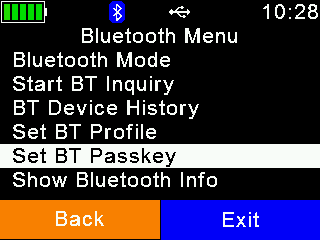

9. Select Set BT Passkey | 10. Set to 0000 |

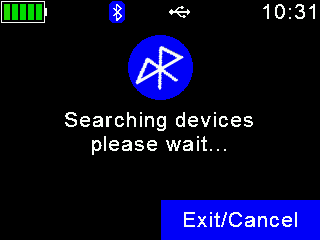

11. Select Start BT Enquiry | 12 Make sure scales is turned on and wait |

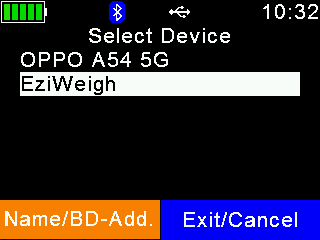

13 Select EZiWeigh | 14. Green Icon means connected - select exit. |
==========================================
To Change between HerdApp and direct scales connections:
Between HerdApp and S3 scales:

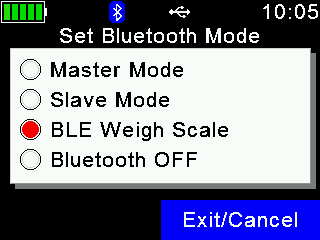

1. Go to BT Mode | 2. Select Slave Mode for HerdApp |
Or. BLE Weigh Scale for S3 scales |
Between HerdApp and EW7i scales:

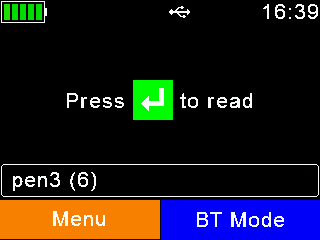

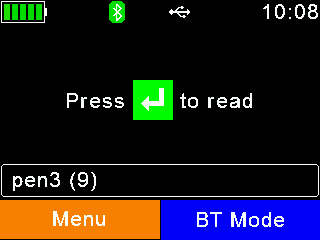

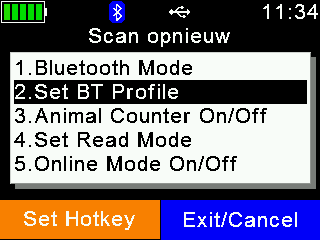

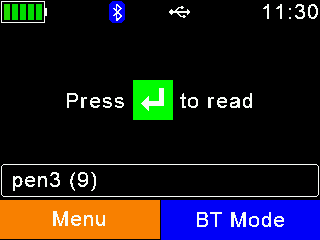

1. Press and Hold BT Mode | 2. Select Set BT Profile |
3. Select BLE for HerdApp | or. Select SPP for EW7i |
4. Go To BT Mode | 5. Select Slave Mode for HerdApp |
Or. Master Mode for EW7i |
==========================================
To Record Weights using the AWR and the S3 Scales:

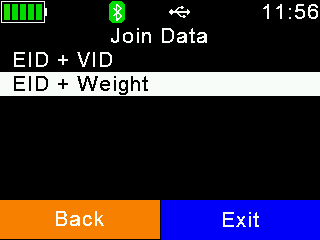

1. Go to Menu  | 2. Select Join Data |

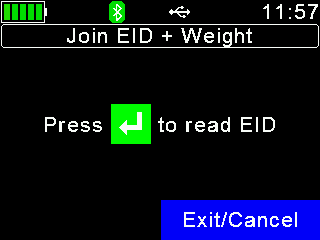

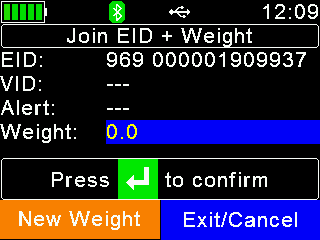

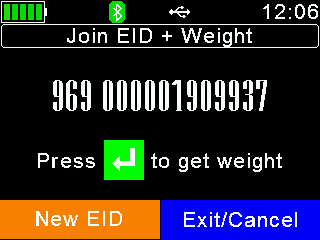

3. Select EID + Weight | 4. Read a tag |
5. Select to get Weight | 6. Wait for Scales |
7. Select Confirm | 8. Read next tag and continue |
